    Class diagrams

    Introduction

    Can explain/identify class diagrams

    UML class diagrams describe the structure (but not the behavior) of an OOP solution. These are possibly the most often used diagrams in the industry and are an indispensable tool for an OO programmer.

    An example class diagram:

    Classes

    Can draw UML classes

    The basic UML notations used to represent a class:

    A Table class shown in UML notation:

    class Table {

        Integer number;
        Chair[] chairs = null;

        Integer getNumber() {
            // ...
        }

        void setNumber(Integer n) {
            // ...
        }
    }

    class Table:

      def __init__(self):
        self.number = 0
        self.chairs = []

      def get_number(self):
        # ...

      def set_number(self, n):
        # ...


    The 'Operations' compartment and/or the 'Attributes' compartment may be omitted if such details are not important for the task at hand. 'Attributes' always appear above the 'Operations' compartment. All operations should be in one compartment rather than each operation in a separate compartment. Same goes for attributes.

    The visibility of attributes and operations is used to indicate the level of access allowed for each attribute or operation. The types of visibility and their exact meanings depend on the programming language used. Here are some common visibilities and how they are indicated in a class diagram:

    • + : public
    • - : private
    • # : protected
    • ~ : package private
    Visibility Java Python
    - private private at least two leading underscores (and at most one trailing underscores) in the name
    # protected protected one leading underscore in the name
    + public public all other cases
    ~ package private default visibility not applicable

    Table class with visibilities shown:

    class Table {

        private Integer number;
        private Chair[] chairs = null;

        public Integer getNumber() {
            //...
        }

        public void setNumber(Integer n) {
            //...
        }
    }

    class Table:

      def __init__(self):
        self.__number = 0
        self.__chairs = []

      def get_number(self):
        # ...

      def set_number(self, n):
        # ...


    Generic classes can be shown as given below. The notation format is shown on the left, followed by two examples.

    Which of these follow the correct UML notation?

    • 1
    • 2
    • 3
    • 4
    • 5
    1. Incorrect: Attributes compartment should be above the Methods compartment.
    2. Incorrect: All attributes should be inside the same compartment.
    3. Correct
    4. Correct: Both Attributes and Methods compartments can be omitted.
    5. Correct: The Attributes and Methods compartments can be empty.

    Draw a UML diagram to represent the Car class as given below. Include visibilities.

    class Car {

        Engine engine;
        private List<Wheel> wheels = null;
        public String model;

        public void drive(int speed) {
            move(speed);
        }

        private void move(int speed) {
            ...
        }
    }


    You may omit self from method signatures in the class diagram.

    class Car:

      def __init__(self, model):
        self._engine = None # type: Engine
        self.__wheels = []  # type: a list of Wheel objects
        self.model = model  # type: string

        def drive(self, speed): # speed is an int
          self.move(speed)

        def __move(self, speed):
          pass


    Associations

    Can interpret simple associations in a class diagram

    You should use a solid line to show an association between two classes.

    This example shows an association between the Admin class and the Student class:

    Can interpret association navigabilities in class diagrams

    You should use arrow heads to indicate the navigability of an association.

    Logic is aware of Minefield, but Minefield is not aware of Logic.

    class Logic {
        Minefield minefield;
    }

    class Minefield {
        ...
    }

    class Logic:

      def __init__(self, minefield):
        self.minefield = minefield

      # ...


    class Minefield:
      # ...


    Here is an example of a bidirectional navigability; each class is aware of the other.

    Navigability can be shown in class diagrams as well as object diagrams.

    According to this object diagram, the given Logic object is associated with and aware of two MineField objects.

    (a)

    Explanation: The diagram indicates that the Unit object should know about the Item object. In the implementation, the Unit object will hold an Item object in one of its variables.

    Can explain/use association roles in class diagrams

    Association Role labels are used to indicate the role played by the classes in the association.

    This association represents a marriage between a Man object and a Woman object. The respective roles played by objects of these two classes are husband and wife.

    Note how the variable names match closely with the association roles.

    class Man {
        Woman wife;
    }

    class Woman {
        Man husband;
    }

    class Man:
      def __init__(self):
        self.wife = None # a Woman object

    class Woman:
       def __init__(self):
         self.husband = None # a Man object


    The role of Student objects in this association is charges (i.e. Admin is in charge of students)

    class Admin {
        List<Student> charges;
    }

    class Admin:
      def __init__(self):
        self.charges = [] # list of Student objects

    Can explain/use association labels in class diagrams

    Association labels describe the meaning of the association. The arrow head indicates the direction in which the label is to be read.

    In this example, the same association is described using two different labels.

    • Diagram on the left: Admin class is associated with Student class because an Admin object uses a Student object.
    • Diagram on the right: Admin class is associated with Student class because a Student object is used by an Admin object.
    Can explain what is the multiplicity of an association

    Commonly used multiplicities:

    • 0..1 : optional, can be linked to 0 or 1 objects.
    • 1 : compulsory, must be linked to one object at all times.
    • * : can be linked to 0 or more objects.
    • n..m : the number of linked objects must be within n to m inclusive.

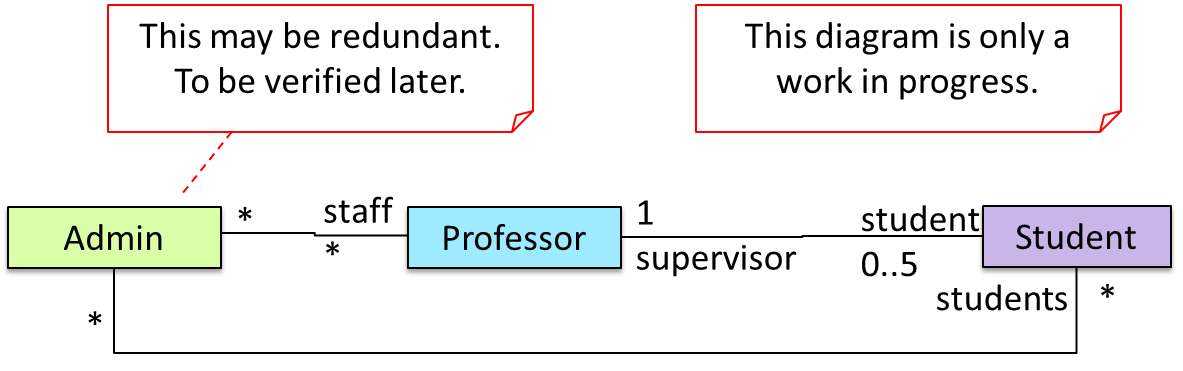

    In the diagram below, an Admin object administers (is in charge of) any number of students but a Student object must always be under the charge of exactly one Admin object.

    In the diagram below,

    • Each student must be supervised by exactly one professor. i.e. There cannot be a student who doesn't have a supervisor or has multiple supervisors.
    • A professor cannot supervise more than 5 students but can have no students to supervise.
    • An admin can handle any number of professors and any number of students, including none.
    • A professor/student can be handled by any number of admins, including none.

    • a. A Unit object can be linked to any number of Item objects.
    • b. An Item object must be linked to 1, 2, 3 or 4 Unit objects.
    • c. A Unit object must be linked to 1, 2, 3, or 4 Item objects.
    • d. A Item object can be linked to 0 or more Unit objects.

    (c)(d)

    Dependencies

    Can use dependencies in a class diagram

    UML uses a dashed arrow to show dependencies.

    Two examples of dependencies:

    Dependencies vs associations:

    • An association is a relationship resulting from one object keeping a reference to another object (i.e., storing an object in an instance variable). While such a relationship forms a dependency, we need not show that as a dependency arrow in the class diagram if the association is already indicated in the diagram. That is, showing a dependency arrow does not add any value to the diagram.
      Similarly, an inheritance results in a dependency from the child class to the parent class but we don't show it as a dependency arrow either, for the same reason as above.
    • Use a dependency arrow to indicate a dependency only if that dependency is not already captured by the diagram in another way (for instance, as an association or an inheritance) e.g., class Foo accessing a constant in Bar but there is no association/inheritance from Foo to Bar.

    Associations as attributes

    Can show an association as an attribute

    An association can be shown as an attribute instead of a line.

    Association multiplicities and the default value can be shown as part of the attribute using the following notation. Both are optional.

    name: type [multiplicity] = default value

    The diagram below depicts a multi-player Square Game being played on a board comprising of 100 squares. Each of the squares may be occupied with any number of pieces, each belonging to a certain player.

    A Piece may or may not be on a Square. Note how that association can be replaced by an isOn attribute of the Piece class. The isOn attribute can either be null or hold a reference to a Square object, matching the 0..1 multiplicity of the association it replaces. The default value is null.

    The association that a Board has 100 Squares can be shown in either of these two ways:

    Show each association as either an attribute or a line but not both. A line is preferred as it is easier to spot.

    Enumerations

    Can interpret enumerations in class diagrams

    Notation:

    In the class diagram below, there are two enumerations in use:

    Show (in UML notation) an enumeration called WeekDay where the value can only be Monday ... Friday.

    Class-level members

    Can interpret class-level members in class diagrams

    In UML class diagrams, underlines denote class-level attributes and variables.

    In the class diagram below, the totalStudents attribute and the getTotalStudents method are class-level.

    Association classes

    Can interpret association classes in class diagrams

    Association classes are denoted as a connection to an association link using a dashed line as shown below.

    In this example Loan is an association class because it stores information about the borrows association between the User and the Book.

    Composition

    Can interpret composition in class diagrams

    UML uses a solid diamond symbol to denote composition.

    Notation:

    A Book consists of Chapter objects. When the Book object is destroyed, its Chapter objects are destroyed too.

    Aggregation

    Can interpret aggregation in class diagrams

    UML uses a hollow diamond to indicate an aggregation.

    Notation:

    Example:

    Aggregation vs Composition

    The distinction between composition (◆) and aggregation (◇) is rather blurred. Martin Fowler’s famous book UML Distilled advocates omitting the aggregation symbol altogether because using it adds more confusion than clarity.

    Which one of these is not recommended to use in UML diagrams because it adds more confusion than clarity?

    (b)

    Class inheritance

    Can interpret class inheritance in class diagrams

    You can use a triangle and a solid line (not to be confused with an arrow) to indicate class inheritance.

    Notation:

    Examples: The Car class inherits from the Vehicle class. The Cat and Dog classes inherit from the Pet class.

    Interfaces

    Can interpret interfaces in class diagrams

    An interface is shown similar to a class with an additional keyword <<interface>>. When a class implements an interface, it is shown similar to class inheritance except a dashed line is used instead of a solid line.

    The AcademicStaff and the AdminStaff classes implement the SalariedStaff interface.

    Abstract classes

    Can interpret abstract classes in class diagrams

    You can use italics or {abstract} (preferred) keyword to denote abstract classes/methods.

    Example:

    Combine

    Can combine different basic aspects of class diagrams

    Draw a class diagram for the code below. Also draw an object diagram that will represent the object structure after running Main#main().

    • Make the multiplicities as strict as possible without contradicting the code.
    • You may omit the Main class from both diagrams.
    import java.util.ArrayList;
    import java.util.List;

    public class Main {
        public static void main(String[] args) {
            Item item1 = new Item();
            Item item2 = new Item();
            Box box1 = new Box(item1);
            Box box2 = new Box(item2);
            item2.setMainCard(new Card());
            item2.addPreviousBox(box1);
            item2.addPreviousBox(box2);
        }
    }

    class Box {
        private Item item;
        Box(Item item) {
            this.item = item;
        }
    }

    class Item {
        private List<Box> previousBoxes = new ArrayList<>();
        private Card mainCard = null;
        private Card subCard = null;

        void setMainCard(Card card) {
            this.mainCard = card;
        }

        void setSubCard(Card card) {
            this.subCard = card;
        }

        void addPreviousBox(Box previousBox) {
            previousBoxes.add(previousBox);
        }
    }

    class Card {

    }


    Draw a class diagram for the code below. Also draw an object diagram that will represent the object structure after running the code. Make the multiplicities as strict as possible without contradicting the code.

    class Box:

      def __init__(self, item):
        self.__item = item # type: Item

    class Item:

      def __init__(self):
        self.__previous_boxes = [] # type: list of Box objects
        self.__main_card = None    # type: Car
        self.__sub_card = None     # type: Card

      def set_main_card(self, card):
        self.__main_card = card # type: Card

      def set_sub_card(self, card):
        self.__sub_card = card # type: Card

      def add_previous_box(self, previous_box):
        self.__previous_boxes.append(previous_box)


    class Card:
      pass


    item1 = Item();
    item2 = Item();
    box1 = Box(item1);
    box2 = Box(item2);
    item2.set_main_card(Card());
    item2.add_previous_box(box1);
    item2.add_previous_box(box2);


    Implement the class structure given below:

    Suppose we wrote a program to follow the class structure given in this class diagram:

    Draw object diagrams to represent the object structures after each of these steps below. Assume that we are trying to minimize the number of total objects.

    i.e. apply step 1 → [diagram 1] → apply step 2 on diagram 1 → [diagram 2] and so on.

    1. There are no persons.

    2. Alfred is the Guardian of Bruce.

    3. Bruce's contact number is the same as Alfred's.

    4. Alfred is also the guardian of another person. That person lists Alfred's home address as his home address as well as office address.

    5. Alfred has an office address at the Wayne Industries building which is different from his home address (i.e. Bat Cave).

    After step 2, the diagram should look like this:

    Sequence diagrams

    Can explain/identify sequence diagrams

    A UML sequence diagram captures the interactions between multiple objects for a given scenario.

    Consider the code below.

    class Machine {

        Unit producePrototype() {
            Unit prototype = new Unit();
            for (int i = 0; i < 5; i++) {
                prototype.stressTest();
            }
            return prototype;
        }
    }

    class Unit {

        public void stressTest() {

        }
    }



    Here is the sequence diagram to model the interactions for the method call producePrototype() on a Machine object.

    Can interpret sequence diagrams with basic notation

    Notation:

    This sequence diagram shows some interactions between a human user and the Text UI of a Command Line InterfaceCLI Minesweeper game.

    The player runs the newgame action on the TextUi object which results in the TextUi showing the minefield to the player. Then, the player runs the clear x y command; in response, the TextUi object shows the updated minefield.

    The :TextUi in the above example denotes an unnamed instance of the class TextUi. If there were two instances of TextUi in the diagram, they can be distinguished by naming them e.g. TextUi1:TextUi and TextUi2:TextUi.

    Arrows representing method calls should be solid arrows while those representing method returns should be dashed arrows.

    Note that unlike in object diagrams, the class/object name is not underlined in sequence diagrams.

    [Common notation error] Activation bar too long: The activation bar of a method cannot start before the method call arrives and a method cannot remain active after the method has returned. In the two sequence diagrams below, the one on the left commits this error because the activation bar starts before the method Foo#xyz() is called and remains active after the method returns.

    [Common notation error] Broken activation bar: The activation bar should remain unbroken from the point the method is called until the method returns. In the two sequence diagrams below, the one on the left commits this error because the activation bar for the method Foo#abc() is not contiguous, but appears as two pieces instead.

    Can interpret sequence diagrams with object creation

    Notation:

    • The arrow that represents the constructor arrives at the side of the box representing the instance.
    • The activation bar represents the period the constructor is active.

    The Logic object creates a Minefield object.

    Can interpret sequence diagrams with object deletion

    UML uses an X at the end of the lifeline of an object to show its deletion.

    Although object deletion is not that important in languages such as Java that support automatic memory management, you can still show object deletion in UML diagrams to indicate the point at which the object ceases to be used.

    Notation:

    Note how the below diagram shows the deletion of the Minefield object.

    Can interpret sequence diagrams with loops

    Notation:

    The Player calls the mark x,y command or clear x y command repeatedly until the game is won or lost.

    Can interpret sequence diagrams with self invocation

    UML can show a method of an object calling another of its own methods.

    Notation:

    The markCellAt(...) method of a Logic object is calling its own updateState(...) method.

    In this variation, the Book#write() method is calling the Chapter#getText() method which in turn does a call back by calling the getAuthor() method of the calling object.

    Can interpret sequence diagrams with alternative paths

    UML uses alt frames to indicate alternative paths.

    Notation:

    Minefield calls the Cell#setMine method if the cell is supposed to be a mined cell, and calls the Cell:setMineCount(...) method otherwise.

    No more than one alternative partitions be executed in an alt frame. That is, it is acceptable for none of the alternative partitions to be executed but it is not acceptable for multiple partitions to be executed.

    Can interpret sequence diagrams with optional paths

    UML uses opt frames to indicate optional paths.

    Notation:

    Logic#markCellAt(...) calls Timer#start() only if it is the first move of the player.

    Can interpret sequence diagrams with parallel paths

    UML uses par frames to indicate parallel paths.

    Notation:

    Logic is calling methods CloudServer#poll() and LocalServer#poll() in parallel.

    If you show parallel paths in a sequence diagram, the corresponding Java implementation is likely to be multi-threaded because a normal Java program cannot do multiple things at the same time.

    Can interpret sequence diagrams with reference frames

    UML uses ref frame to allow a segment of the interaction to be omitted and shown as a separate sequence diagram. Reference frames help you to break complicated sequence diagrams into multiple parts or simply to omit details you are not interested in showing.

    Notation:

    The details of the get minefield appearance interactions have been omitted from the diagram.

    Those details are shown in a separate sequence diagram given below.

    Can show calls to static methods

    Method calls to static (i.e., class-level) methods are received by the class itself, not an instance of that class. You can use <<class>> to show that a participant is the class itself.

    In this example, m calls the static method Person.getMaxAge() and also the setAge() method of a Person object p.

    Here is the Person class, for reference:

    Can interpret sequence diagrams with minimal notation

    To reduce clutter, activation bars and return arrows may be omitted if they do not result in ambiguities or loss of information. Informal operation descriptions such as those given in the example below can be used, if more precise details are not required for the task at hand.

    A minimal sequence diagram

    Object diagrams

    Can explain/identify object diagrams

    An object diagram shows an object structure at a given point of time.

    An example object diagram:

    Can draw UML objects

    Notation:

    Notes:

    • The class name and object name e.g. car1:Car are underlined.
    • objectName:ClassName is meant to say 'an instance of ClassName identified as objectName'.
    • Unlike classes, there is no compartment for methods.
    • Attributes compartment can be omitted if it is not relevant to the task at hand.
    • Object name can be omitted too e.g. :Car which is meant to say 'an unnamed instance of a Car object'.

    Some example objects:

    Draw a UML diagram to represent the Car object created by the following code.

    class Car {

        private double price;
        private int speed;

        Car(double price, int speed) {
            // ...
        }
    }

    // somewhere else in the code

    Car myCar = new Car(13.5, 200);

    class Car:

      def __init__(self, price, speed):
        self.__price = price # type: float
        self.__speed = speed # type: int


    # somewhere else in the code
    my_car = Car(13.5, 200)

    Can interpret simple associations among objects

    A solid line indicates an association between two objects.

    An example object diagram showing two associations:

    Activity diagrams

    Introduction

    Can explain activity diagrams

    UML  activity diagrams (AD) can model workflows.  Flow charts are another type of diagram that can model workflows. Activity diagrams are the UML equivalent of flow charts.

    Unified Modeling Language (UML) is a graphical notation to describe various aspects of a software system. UML is the brainchild of three software modeling specialists James Rumbaugh, Grady Booch and Ivar Jacobson (also known as the Three Amigos). Each of them had developed their own notation for modeling software systems before joining forces to create a unified modeling language (hence, the term ‘Unified’ in UML). UML is currently the de facto modeling notation used in the software industry.

    An example activity diagram:

    [source:wikipeida]

    Basic notations

    Can interpret linear paths in activity diagrams

    An activity diagram (AD) captures an activity through the actions and control flows that make up the activity.

    • An action is a single step in an activity. It is shown as a rectangle with rounded corners.
    • A control flow shows the flow of control from one action to the next. It is shown by drawing a line with an arrow-head to show the direction of the flow.

    Note the slight difference between the start node and the end node which represent the start and the end of the activity, respectively.

    This activity diagram shows the action sequence of the activity a passenger rides the bus:

    Which of these activity diagrams use the correct UML notation?

    • i
    • ii
    • iii
    • iv
    • v

    • i: 👍 Correct. The arrow-head type does not matter.
    • ii: Incorrect. The start and end node notations are swapped.
    • iii: Incorrect. Action boxes should have rounded corners.
    • iv: 👍 Correct. An activity can have only one action.
    • v: Incorrect. There cannot be any double-headed arrows.
    Can interpret alternate paths in activity diagrams

    A branch node shows the start of alternate paths. Each control flow exiting a branch node has a guard condition: a boolean condition that should be true for execution to take that path. Exactly one of the guard conditions should be true an any.

    A merge node shows the end of alternate paths.

    Both branch nodes and merge nodes are diamond shapes. Guard conditions must be in square brackets.

    The AD below shows alternate paths involved in the workflow of the activity shop for product:

    Some acceptable simplifications (by convention):

    • Omitting the merge node if it doesn't cause any ambiguities.
    • Multiple arrows can starting from the same corner of a branch node.
    • Omitting the [Else] condition.

    The AD below illustrates the simplifications mentioned above:

    Which of these activity diagrams use the correct UML notation?

    • i
    • ii
    • iii
    • iv
    • v
    • vi

    • i: 👍 Correct. There can be more than two alternate paths.
    • ii: 👍 Correct. An alternate path can divide into more branches.
    • iii: 👍 Correct. A branch can join other branches.
    • iv: Incorrect. At x = 5 both guard conditions become true.
    • v: 👍 Correct. It is fine for a branch to form a loop by going back to the original branch node.
    • iv: Incorrect. Guard conditions should be given in square brackets.
    Can interpret parallel paths in activity diagrams

    Fork nodes indicate the start of parallelconcurrent flows of control.

    Join nodes indicate the end of parallel paths.

    Both have the same notation: a bar.

    In a paths within a matching fork-join pairset of parallel paths, execution along all parallel paths should be complete before the execution can start on the outgoing control flow of the join.

    In this activity diagram (from an online shop website) the actions User browses products and System records browsing data happen in parallel. Both of them need to finish before the log out action can take place.

    Which of these activity diagrams use the correct UML notation?

    • i
    • ii
    • iii
    • iv

    • i: 👍 Correct. There can be more than two parallel paths.
    • ii: Incorrect. All parallel paths that started from a fork should end in the same join node.
    • iii: Incorrect. Parallel paths must end with a join node.
    • iv: 👍 Correct. A parallel path can have multiple actions.
    Can use rakes in activity diagrams

    The rake notation is used to indicate that a part of the activity is given as a separate diagram.

    Here is the AD for a game of ‘Snakes and Ladders’.

    The rake symbol (in the Move piece action above) is used to show that the action is described in another subsidiary activity diagram elsewhere. That diagram is given below.

    Can explain swimlanes in activity diagrams

    It is possible to partition an activity diagram to show who is doing which action. Such partitioned activity diagrams are sometime called swimlane diagrams.

    A simple example of a swimlane diagram:

    Notes

    Can use UML notes

    UML notes can augment UML diagrams with additional information. These notes can be shown connected to a particular element in the diagram or can be shown without a connection. The diagram below shows examples of both.

    Example:

    Miscellaneous

    Can distinguish between class diagrams and object diagrams

    Compared to the notation for class diagrams, object diagrams differ in the following ways:

    • Show objects instead of classes:
      • Instance name may be shown
      • There is a : before the class name
      • Instance and class names are underlined
    • Methods are omitted
    • Multiplicities are omitted

    Furthermore, multiple object diagrams can correspond to a single class diagram.

    Both object diagrams are derived from the same class diagram shown earlier. In other words, each of these object diagrams shows ‘an instance of’ the same class diagram.

    Which of these class diagrams match the given object diagram?

    • 1
    • 2

    (1) (2)

    Explanation: Both class diagrams allow one Unit object to be linked to one Item object.
